TM2-2040-BC

Name: TM2-2040-BC
Brand: Q-Mark Manufacturing Inc.
Price: 79.0 USD
Availability: InStock

$79.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

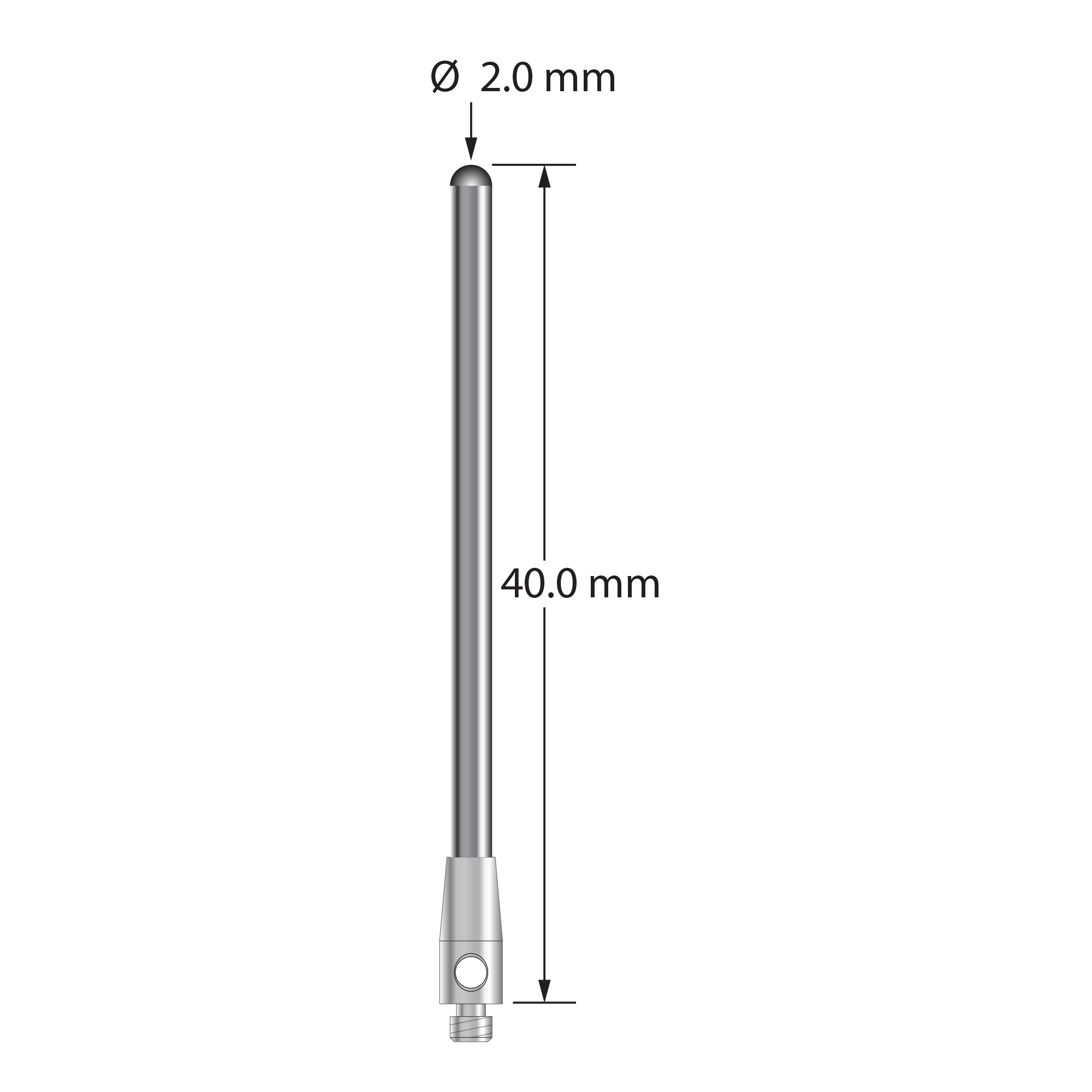

M2 stylus with 2.0 mm diameter carbide cylinder and 3.0 mm diameter x 7.0 mm long stainless steel base. Overall stylus length is 40.0 mm. Stylus weight is 1.85 grams. Compare to Renishaw A-5003-0074, Hexagon 03969280, and Mitutoyo K651036.

Cylinder styli are used for edge probing on stampings or sheet metal parts. They are not suitable for high accuracy work because the form of a cylinder is not as precise as a sphere. Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 2.0

base diameter: 3.0

length 1: 40.0

length 2: 33.0

stem diameter: 2.0

Materials

ball material: Carbide

base material: Stainless Steel

stem material: Carbide
