TM2-2016-BC
TM2-2016-BC

TM2-2016-BC

$79.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

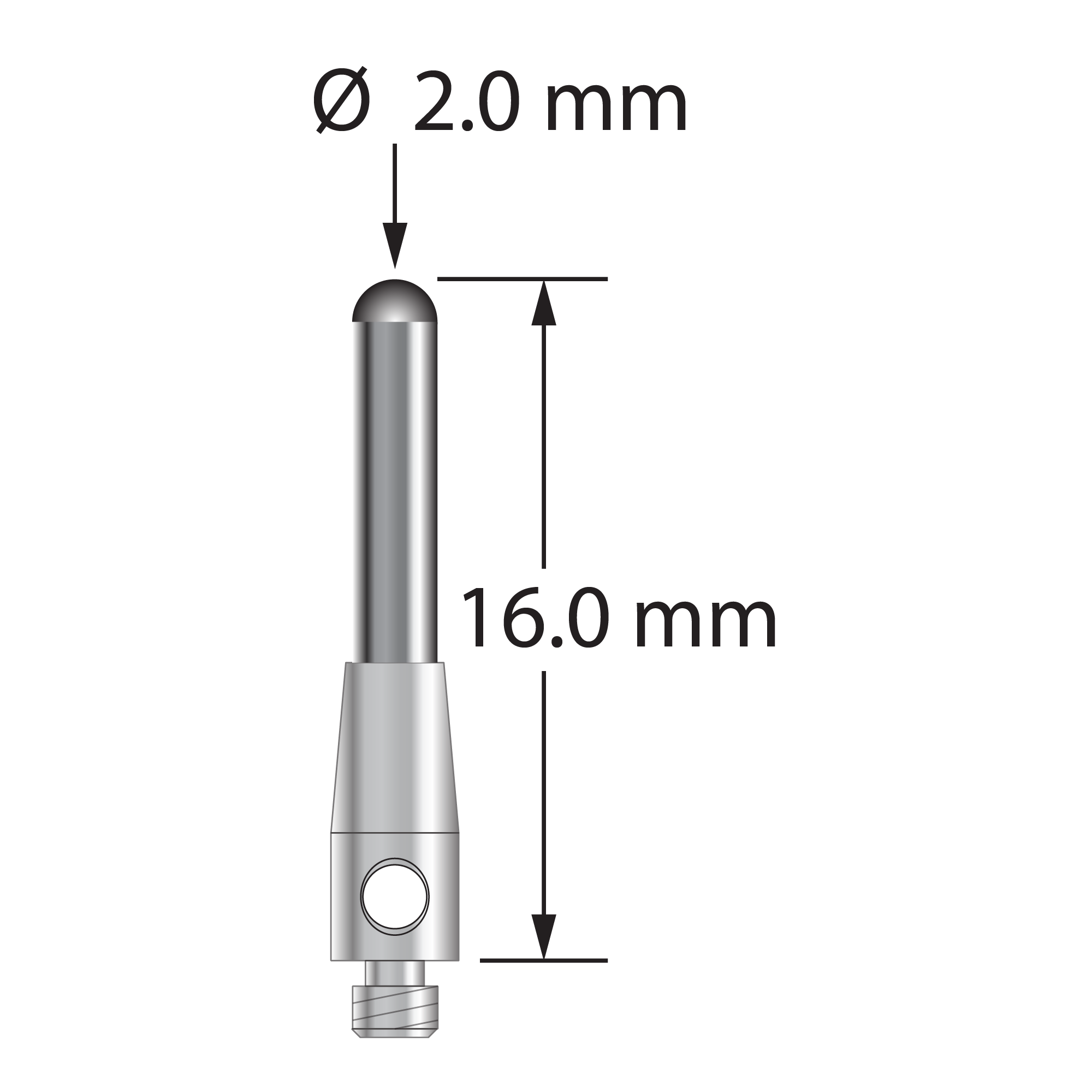

M2 stylus with 2.0 mm diameter carbide cylinder and 3.0 mm diameter x 7.0 mm long stainless steel base. Overall stylus length is 16.0 mm. Stylus weight is 0.72 gram. Compare to Renishaw A-5003-1228.

Cylinder styli are used for edge probing on stampings or sheet metal parts. They are not suitable for high accuracy work because the form of a cylinder is not as precise as a sphere. Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 2.0
base diameter: 3.0
length 1: 16.0
length 2: 9.0
stem diameter: 2.0

Materials

ball material: Carbide
base material: Stainless Steel
stem material: Carbide
