TM2-1515-B

Name: TM2-1515-B
Brand: Q-Mark Manufacturing Inc.
Price: 149.0 USD
Availability: InStock

$149.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

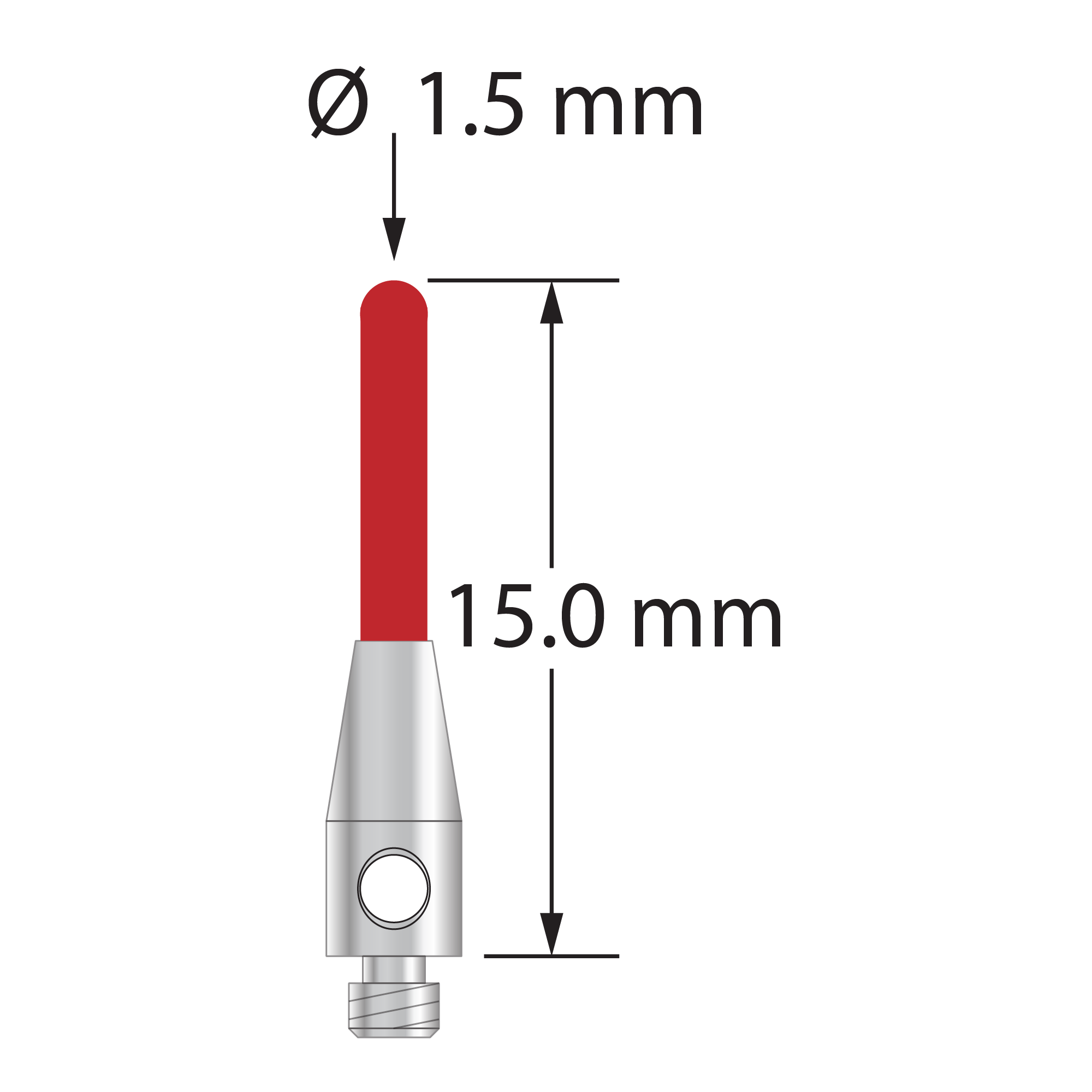

M2 stylus with 1.5 mm diameter ruby cylinder with 3.0 mm diameter x 7.0 mm long stainless steel base. Overall stylus length is 15.0 mm. Stylus weight is 0.28 gram. Compare to Renishaw A-5000-8877 and Mitutoyo K651035.

Cylinder styli are used for edge probing, for example, the edges of stampings or sheet metal. They are not suitable for high accuracy work because their form is not as precise as a sphere. Please contact Q-Mark for answers about using cylinder styli.

Dimensions

ball diameter: 1.5

base diameter: 3.0

length 1: 15.0

length 2: 8.0

stem diameter: 1.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Ruby
