TM2-0812-SN

$71.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

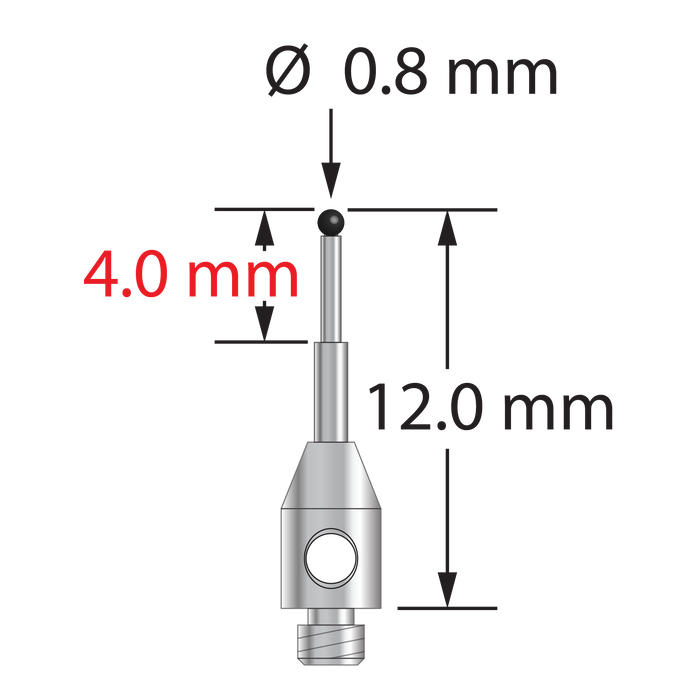

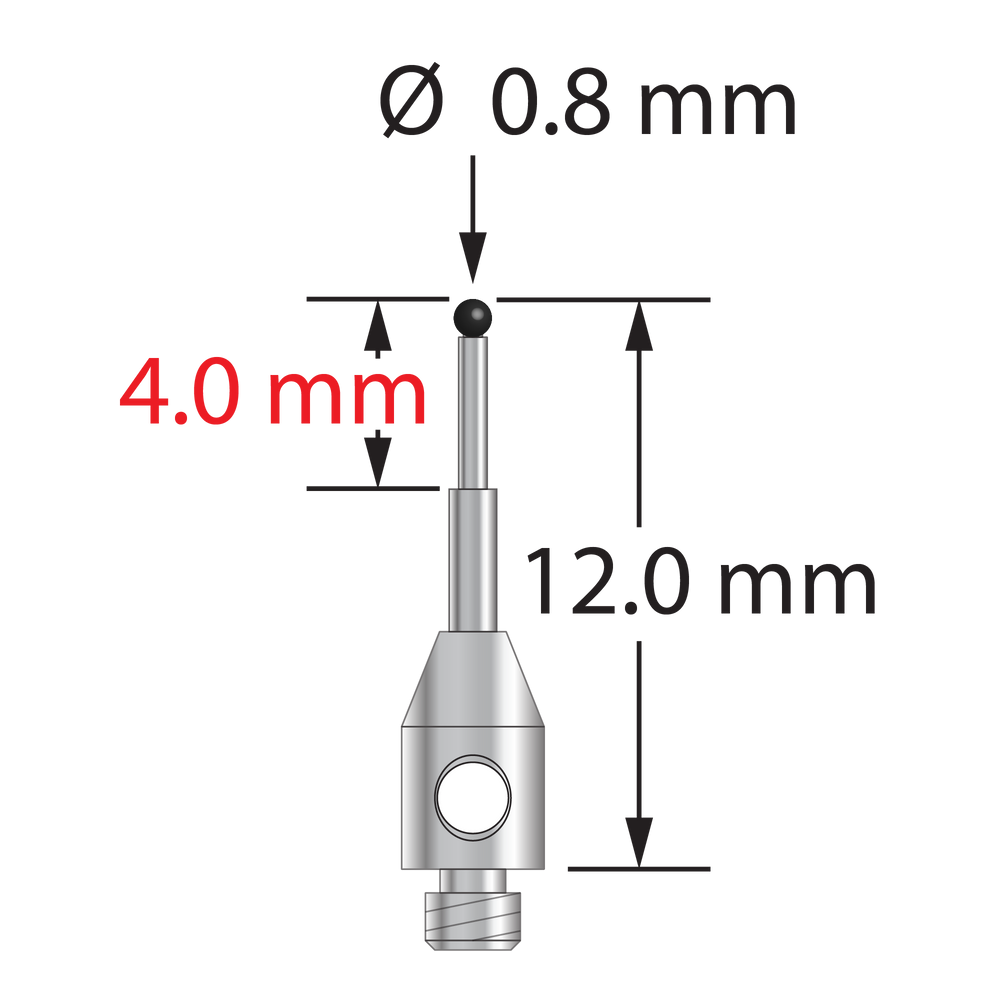

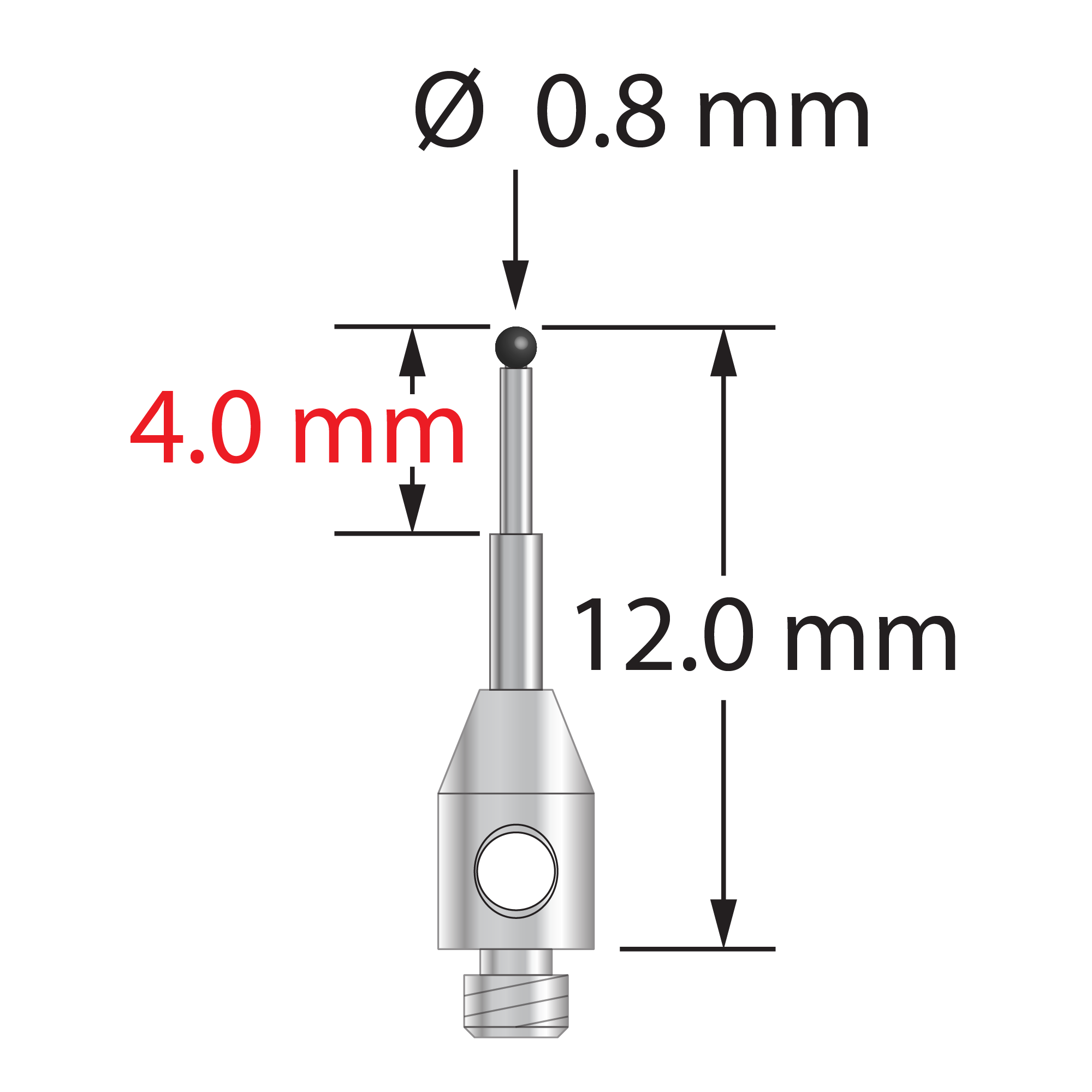

M2 stylus with 0.8 mm diameter silicon nitride ball, stepped carbide shaft, and 3.0 mm diameter x 5.0 mm long stainless steel base. Minor stem diameter is 0.6 mm, major diameter is 1.0 mm. Overall stylus length is 12.0 mm. Stylus weight is 0.32 gram.

Dimensions

ball diameter: 0.8
base diameter: 3.0
length 1: 12.0
length 2: 7.0
length 3: 4.0
stem diameter: 1.0
stem step diameter: 0.6

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Carbide
