Probe of the Month January 2016

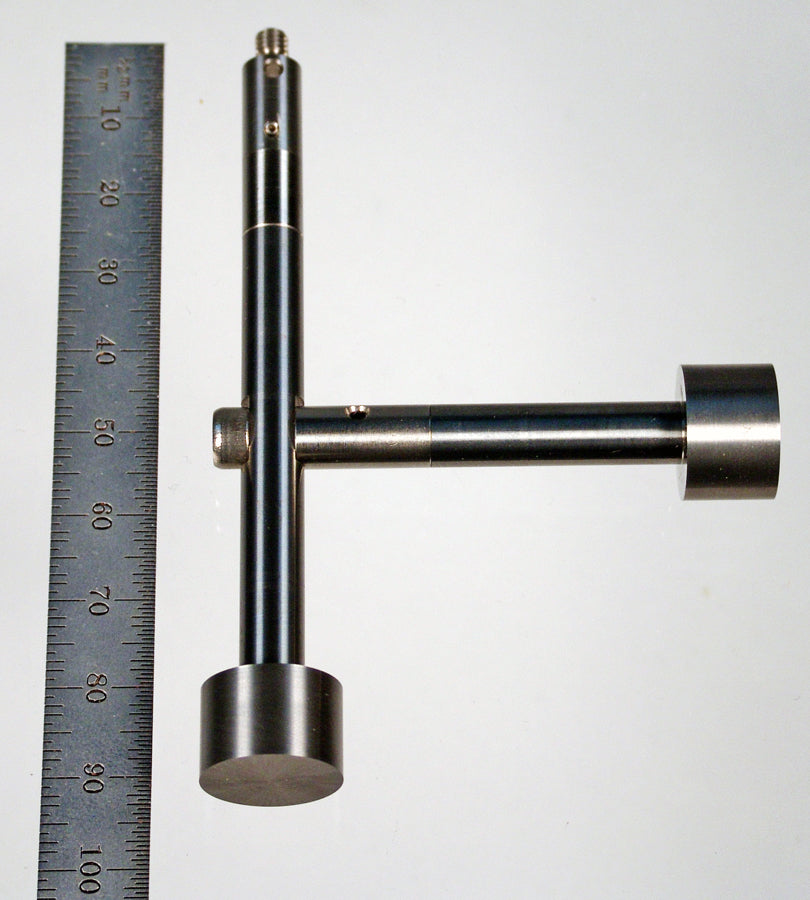

January's Probe of the Month is an unusual right-angle double disk probe.  The disks are made from solid carbide.  They are 15.0 mm in diameter and 10.0 mm thick.  The carbide stems are 7.0 mm diameter.  The stems are fitted with M4 threads made from stainless steel.  At the top of the photo is a Q-Mark ProFit 360 degree rotary adapter, allowing the stylus to be positioned at any rotational angle. With all that steel and carbide, the full assembly weighs in at 109.2 grams.

Our client is a prime contractor to the US Defense Department.  They ordered six.
