TM3-4040-B

Name: TM3-4040-B
Brand: Q-Mark Manufacturing Inc.
Price: 138.0 USD
Availability: InStock

$138.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

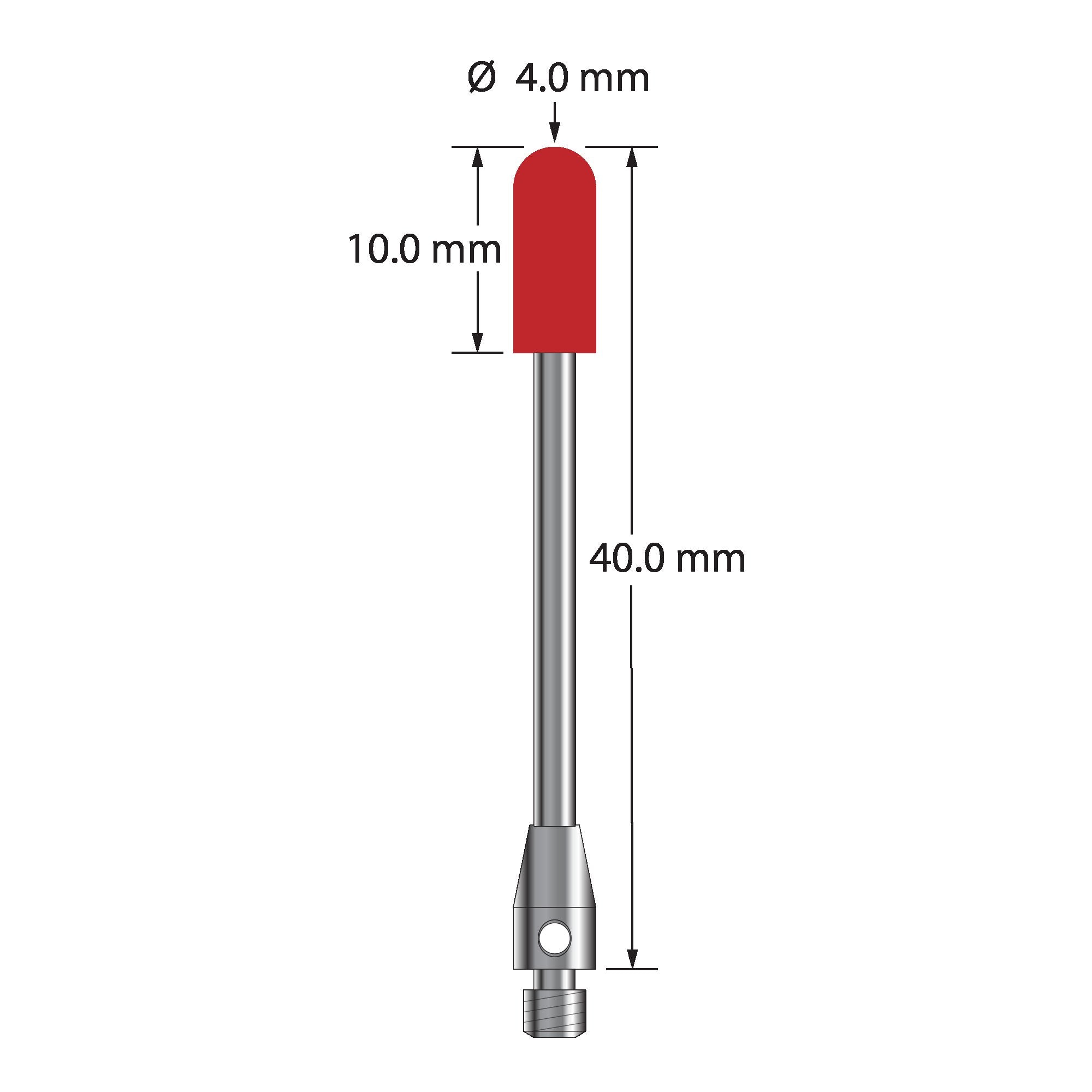

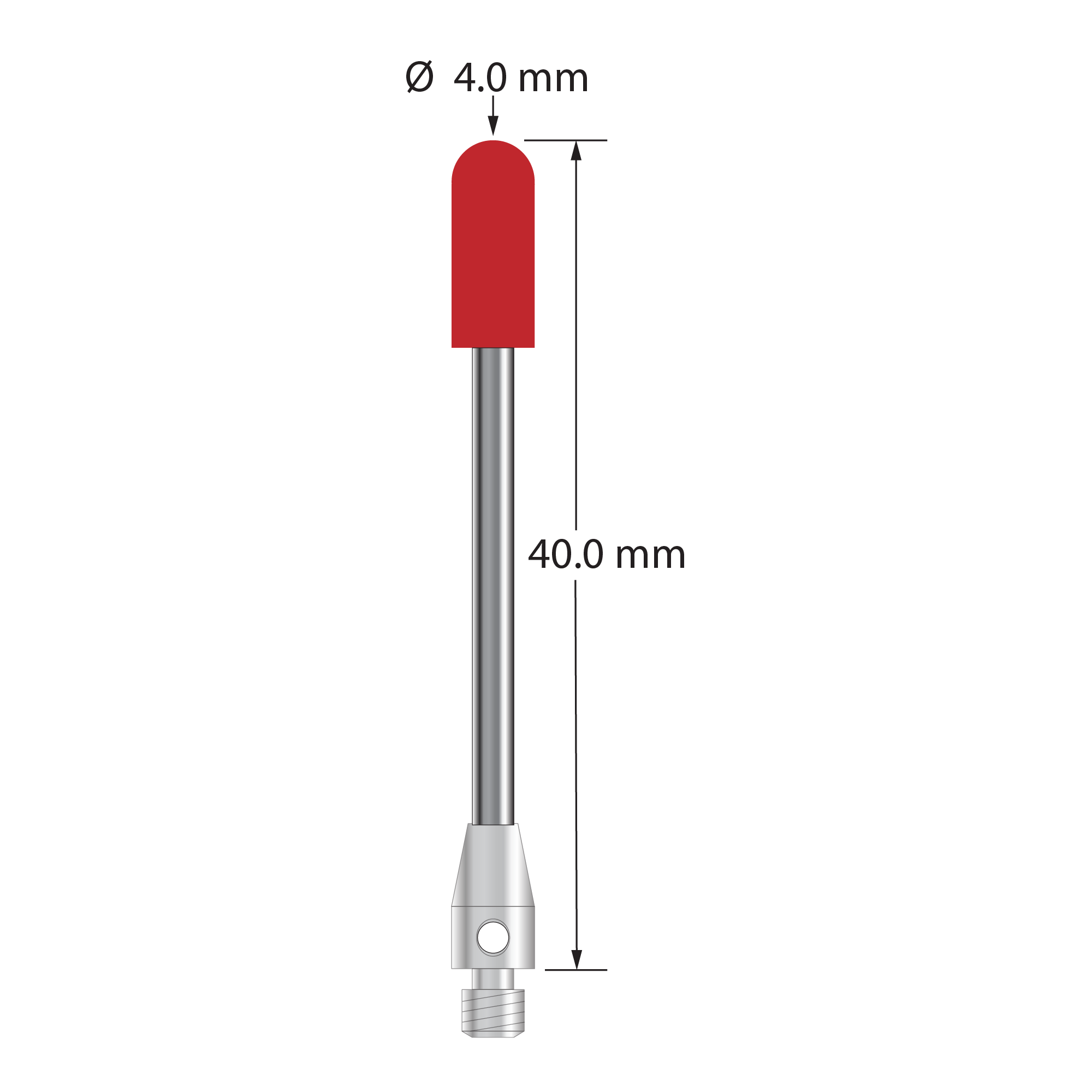

M3 stylus with 4.0 mm diameter ruby cylinder, 2.0 mm carbide stem, and 4.0 mm diameter x 7.0 mm long stainless steel base. Overall stylus length is 40.0 mm. Stylus weight is 2.20 grams. Cylinder styli are used for probing narrow edges, like those found on stampings and sheet metal. They are not suitable for high accuracy work because the form of a cylinder is not as precise as a sphere. Please contact Q-Mark with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 4.0

base diameter: 4.0

length 1: 40.0

length 2: 33.0

length 3: 10.0

stem diameter: 2.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
