TM2-1511-CYL
TM2-1511-CYL

TM2-1511-CYL

$25.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

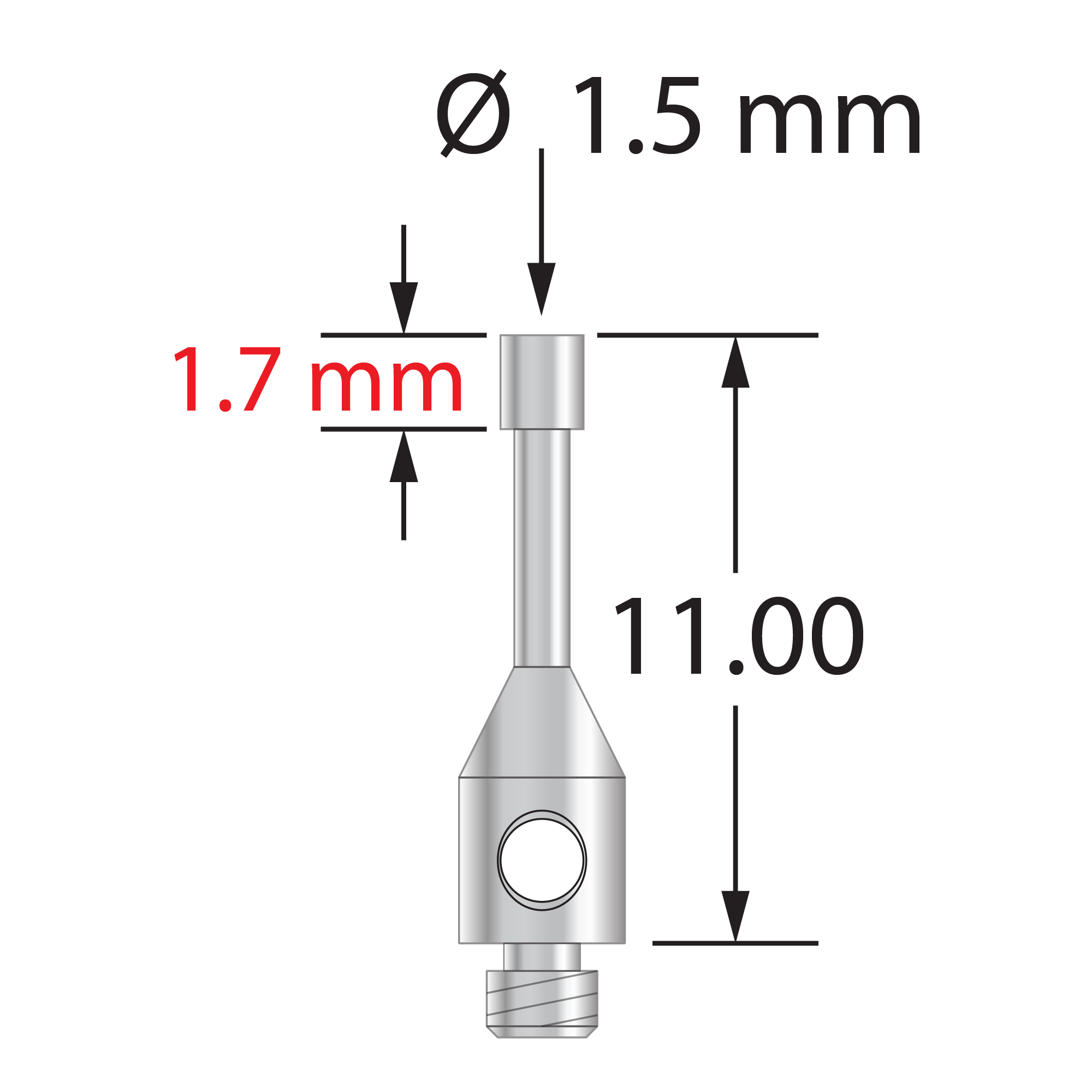

M2 stylus with 1.5 mm diameter stainless steel cylinder, 1.0 mm diameter stainless steel stem, and 3.0 mm diameter stainless steel base. Overall stylus length is 11.0 mm. Stylus weight is 0.29 gram. Compare to Zeiss 602030-8096-000, Renishaw A-5004-7589, and Mitutoyo K651030.

Cylinder styli are used for edge probing on stampings or sheet metal parts. They are not suitable for high accuracy work because the form of a cylinder is not as precise as a sphere. Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 1.5
base diameter: 3.0
length 1: 11.0
length 2: 1.7
stem diameter: 1.0

Materials

ball material: Stainless Steel
base material: Stainless Steel
stem material: Stainless Steel
